FROM OUR PRODUCT RANGE
OPX+
- Output Channels 10 analog
- Sampling Rate 1 GS/s
- Feedback Latency 224 ns
- Resolution 16-bit DAC
- Form Factor 2U rack
- Multi-Unit Scaling Up to 9

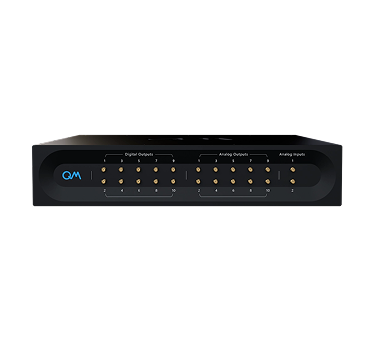

OPX+ is Quantum Machines’ processor-based quantum controller, combining pulse generation, readout, and real-time classical computation on a single chip.
At its core is a multi-core Pulse Processing Unit that generates and manipulates pulses on the fly instead of playing them from memory, cutting upload time and memory usage to near zero. This lets OPX+ run advanced sequences, like 5,000-depth randomized benchmarking, in minutes rather than hours, and reduce conditional feedback latency to 224 ns with no central controller bottleneck. Multiple units connect into a single synchronized system, scaling channel count without adding a second programming layer.
Overview
OPX+ is Quantum Machines’ processor-based quantum controller, combining pulse generation, readout, and real-time classical computation on a single Pulse Processing Unit. It eliminates the upload and compilation delays of memory-based controllers, running complex quantum sequences directly from live, on-the-fly calculation, with no separate compile step required at all..
Specifications
- 10 analog outputs: 1 GS/s, 400 MHz bandwidth, 16-bit resolution
- 2 analog inputs: 1 GS/s, 400 MHz bandwidth, 12-bit resolution
- 10 digital outputs: 1 GS/s, 3.3 V LVTTL
- Feedback latency: 224 ns conditional, 272 ns full parametric
- Form factor: 2U rack, shelf mounting
- Multi-unit scaling: up to 9 units, 90 outputs, 18 inputs
Additional Information
- Programmed through QUA, an open-source pulse-level language with full control flow
- Built-in FIR/IIR distortion compensation filters and crosstalk correction
- Randomized benchmarking at 5,000+ gate depth runs in minutes, no upload delay
- Time tagging and TTL counting with jitter below 50 ps
- Made by Quantum Machines, available in India exclusively through Globetek
