OPX1000
- Channel Density 80 channels
- Modules LF-FEM, MW-FEM
- Sampling Rate 2 GSa/s
- Frequency Range DC–10.5 GHz
- Processing 8 PPUs/chassis
- Form Factor 3U chassis

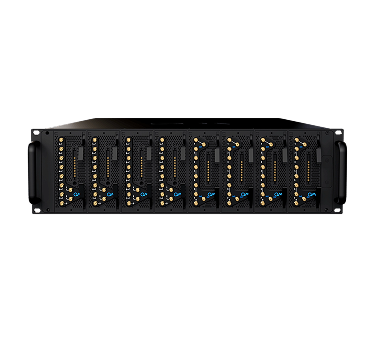

The OPX1000 is Quantum Machines’ modular quantum control platform, built to scale from single-qubit setups to systems of 1,000 qubits and beyond, without a change in software architecture.
Each chassis houses up to 8 front-end modules, combining the industry’s highest channel density with real-time processing built directly into the control loop. Labs start with a single module and add capacity as their qubit count grows, protecting the initial hardware investment and avoiding a redesign at each scaling step. Multiple chassis synchronize through QSync technology and share full measurement data, so a multi-unit setup runs as one coordinated system rather than several requiring manual coordination.
Overview
The OPX1000 is a modular, high-density hybrid control platform for quantum computers at scale, pairing real-time pulse-level processing with a qubit-optimized analog front end. It scales from a single chassis to large multi-unit systems supporting a thousand qubits and beyond, without requiring any redesign of the underlying control software or programming layer.
Specifications
- Channel density: Up to 64 outputs, 16 inputs, 3U chassis
- LF-FEM: 8 outputs (DC to 750 MHz), 2 inputs, 5 Vpp
- MW-FEM: 8 outputs (50 MHz to 10.5 GHz), low phase noise
- Sampling rate: 2 GSa/s
- Processing: Up to 8 PPUs per chassis, real-time control
- Modularity: Up to 8 modules per chassis, mixed and matched
- Multi-unit scaling: QSync synchronization, any-to-any data sharing
Additional Information
- Programmed through QUA, an open-source pulse-level language, with QUAlibrate for automated calibration
- Supports all major qubit modalities: superconducting, spin, neutral atom, and defect center
- Built-in FIR/IIR filters and crosstalk compensation matrices on the LF-FEM
- Integrates with NVIDIA DGX Quantum for GPU-accelerated hybrid control
- Made by Quantum Machines, available in India exclusively through Globetek
