Modern electronics, from AI processors and telecom equipment to embedded systems, rely heavily on Ball Grid Array (BGA) packaged integrated circuits. BGA packages allow manufacturers to place hundreds or even thousands of connections under a chip, improving electrical performance while saving board space.
However, this dense packaging introduces a major challenge: how do engineers test these chips before they are permanently soldered onto a PCB?
This is where BGA IC test sockets play a critical role.
For design engineers, procurement teams, and project managers, test sockets provide a reliable way to evaluate, debug, and validate semiconductor devices without soldering them to the board. This dramatically accelerates development cycles while protecting expensive prototype silicon.
Companies like Ironwood Electronics, represented in India by Globetek, develop specialized sockets designed for high-speed testing, silicon validation, and automated semiconductor test environments.
A helpful way to understand how a BGA test socket works is to think about the bed-of-nails tester commonly used for circuit boards.
In a bed-of-nails tester, a PCB is placed on a fixture containing hundreds of tiny spring-loaded pins. Each pin presses against a specific point on the board, allowing engineers to measure electrical signals without soldering wires to every test point.
A BGA test socket works in a very similar way.
Instead of probing a circuit board, the socket contains a precision array of microscopic contacts that press against the solder balls on the underside of a BGA chip.
When the chip is placed in the socket:
- Each solder ball touches a contact pin
- Signals pass through the socket to the test board
- Engineers can analyze performance using measurement tools
Just like a bed-of-nails tester lets engineers quickly probe a PCB, a BGA socket allows engineers to probe a microchip—without permanently attaching it to the board.
This means chips can be tested, removed, replaced, and tested again in seconds.
What Is a BGA IC Test Socket?
A BGA IC test socket is a mechanical and electrical interface that temporarily connects a BGA packaged integrated circuit to a test PCB or Automated Test Equipment (ATE).
Instead of solder joints, the socket uses precision contact mechanisms such as spring probes or elastomer contacts to create electrical connections.
These sockets allow engineers to:
- Test multiple IC samples quickly
- Debug early silicon
- Validate signal integrity
- Perform reliability testing
Research from the Institute of Electrical and Electronics Engineers highlights that modern semiconductor testing requires high-bandwidth socket interfaces capable of supporting multi-GHz signals.
Why BGA Test Sockets Are Necessary
Testing BGA devices without sockets is difficult and risky. Engineers would need to repeatedly solder and desolder chips, which can damage both the device and the PCB.
The advantages of test sockets become clear in the comparison below.
| Factor | Without Test Socket | With BGA Test Socket |
| Prototype testing | Requires soldering | Quick insertion/removal |
| Debugging | Difficult chip swapping | Fast sample testing |
| PCB reliability | Pads may get damaged | Non-destructive testing |
| Development speed | Slow iterations | Rapid validation cycles |
| Cost | Higher rework costs | Lower hardware risk |
For teams developing new semiconductor products, test sockets significantly reduce development time and engineering effort.
Key Components of a BGA Test Socket
BGA test sockets are precision devices composed of several mechanical and electrical elements.
1. Socket Housing
The socket body provides mechanical support and alignment.
Typical materials include:
- High-temperature polymers
- Aluminum frames
- Stainless steel hardware
These materials ensure durability under thermal testing environments.
2. Contact Mechanism
The contact array forms the electrical bridge between the chip and the PCB.
Common technologies include:
| Contact Type | Description | Advantages | Typical Use |
| Spring probes (pogo pins) | Spring-loaded contacts | High reliability | ATE testing |
| Conductive elastomer | Rubber embedded with conductive particles | Low insertion force | High-speed signals |
| Crown contacts | Multi-point metal contacts | Strong electrical connection | Power devices |
| Silver ball matrix | Precision conductive columns | Very high bandwidth | RF testing |
High-performance sockets can support bandwidths above 40 GHz, enabling accurate testing of modern processors and networking chips.
3. Compression Lid
The compression lid ensures uniform pressure across all contacts.
Common mechanisms include:
- Clamshell lids
- Cam-lever lids
- Screw-mounted compression plates
Uniform pressure is essential for reliable electrical connections.
4. Alignment Frame
The alignment guide ensures the BGA device sits perfectly over the contact grid.
This prevents:
- Solder ball damage
- Misalignment
- Inconsistent signal connections
5. PCB Stiffener Plate
Because the socket applies compression force, a stiffener plate behind the PCB prevents board flexing.
This ensures consistent contact across hundreds of pins.

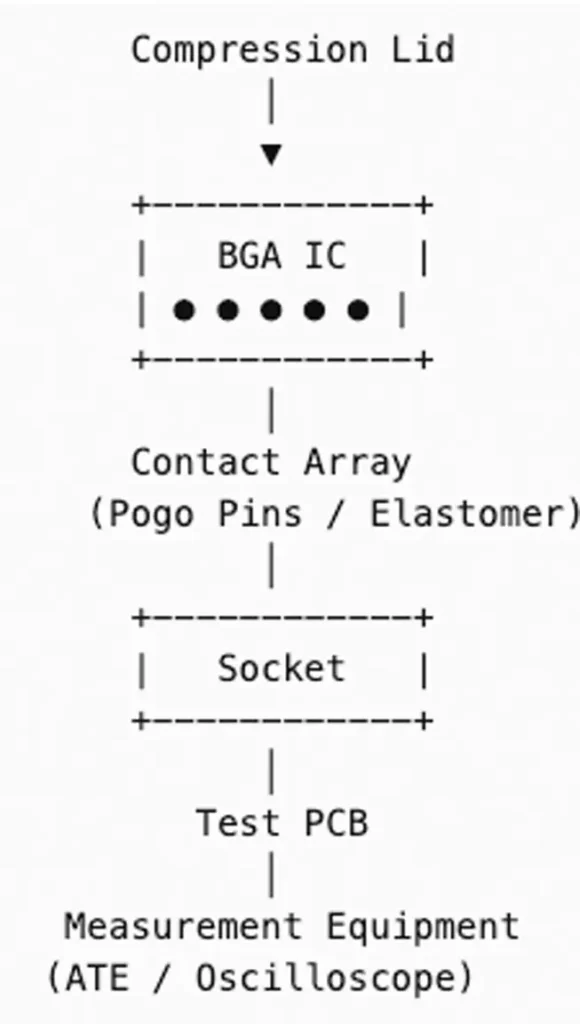

Simplified BGA Test Socket Architecture
Below is a simplified representation of how signals flow through a test socket.
Signal flow: IC → socket contacts → test PCB → measurement instruments
Types of BGA Test Sockets
Different testing environments require different socket designs.
| Socket Type | Purpose | Key Feature |
| Evaluation sockets | Early silicon testing | Easy IC insertion |
| Burn-in sockets | Reliability testing | High temperature tolerance |
| Production test sockets | Manufacturing testing | Long cycle life |
| Debug sockets | Engineering analysis | Open access to IC |
Reliability testing methods used with burn-in sockets often follow guidelines from organizations like IPC.
Applications of BGA Test Sockets
Silicon Validation
Engineers use sockets to test early chip samples for:
- Functional behavior
- Timing accuracy
- Signal integrity
Prototype Development
During system development, sockets allow rapid testing of:
- FPGA prototypes
- ASIC devices
- Embedded systems
Failure Analysis
If chips fail during testing, sockets enable engineers to perform:
- Electrical probing
- Thermal testing
- Signal tracing
Open-top sockets allow direct access to the chip surface.
Automated Production Testing
In semiconductor manufacturing, test sockets interface with Automated Test Equipment (ATE).
Key requirements include:
- Long insertion cycle life
- Low contact resistance
- Consistent electrical performance
High-quality sockets can support 100,000–500,000 insertion cycles.
Electrical Performance Parameters
When selecting a socket, engineers typically evaluate:
| Parameter | Typical Value |
| Contact resistance | <30 mΩ |
| Bandwidth | Up to 40 GHz |
| Operating temperature | −55 °C to +155 °C |
| Current capacity | Up to 4 A per pin |
| Insertion cycle life | Up to 500k cycles |
These parameters ensure the socket does not distort signals or introduce measurement errors.
Choosing the Right BGA Test Socket
Selecting the right socket involves evaluating several technical factors.
Electrical Requirements
- Signal speed
- Rf performance
- Power handling
Mechanical Requirements
- BGA pitch
- Ball count
- Package dimensions
Testing Environment
- Temperature conditions
- Automation compatibility
- Insertion cycle life
Working with experienced manufacturers like Ironwood Electronics helps ensure the socket is optimized for signal integrity, mechanical reliability, and long-term test performance.
Conclusion
As semiconductor devices become more complex, BGA IC test sockets have become essential tools in electronics development and manufacturing.
By providing a temporary but reliable electrical interface, these sockets allow engineers to:
- Validate silicon faster
- Debug systems efficiently
- Protect valuable ic samples
Through partnerships with global technology providers such as Ironwood Electronics, companies like Globetek help engineering teams access advanced semiconductor testing solutions across India and beyond.
Frequently Asked Questions (FAQ)
What is a BGA test socket used for?
A BGA test socket allows engineers to test Ball Grid Array packaged integrated circuits without soldering them to a PCB. This enables quick device insertion, testing, and removal during development and validation.
What is the difference between a burn-in socket and a test socket?
Burn-in sockets are designed for long-duration high-temperature stress testing, while standard test sockets are used for functional validation and debugging.
How many cycles can a BGA test socket support?
High-quality sockets can support 100,000 to 500,000 insertion cycles, depending on the contact technology and testing environment.
Why are high-speed sockets important for modern chips?
Modern processors and communication ICs operate at multi-GHz speeds, requiring sockets that maintain excellent signal integrity and low parasitic effects.
